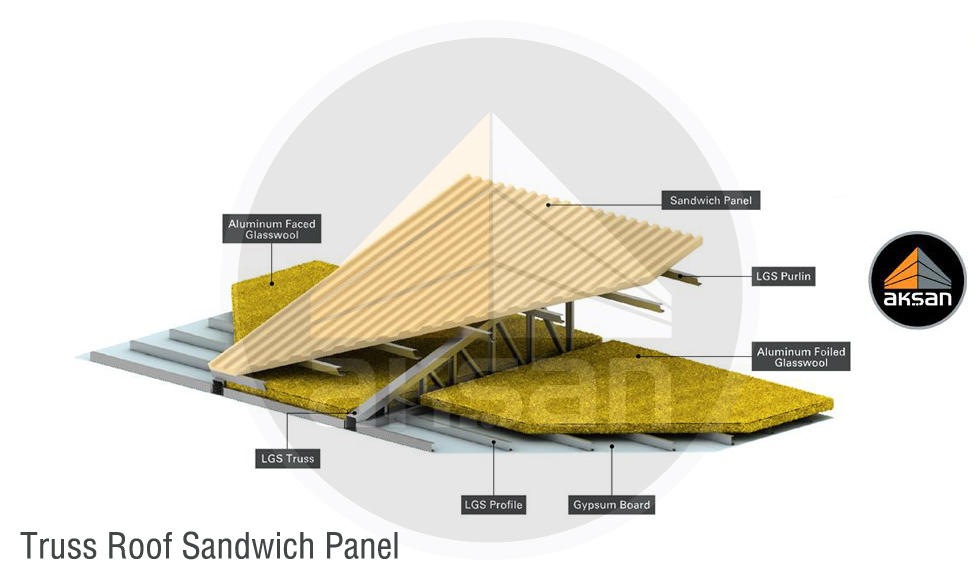

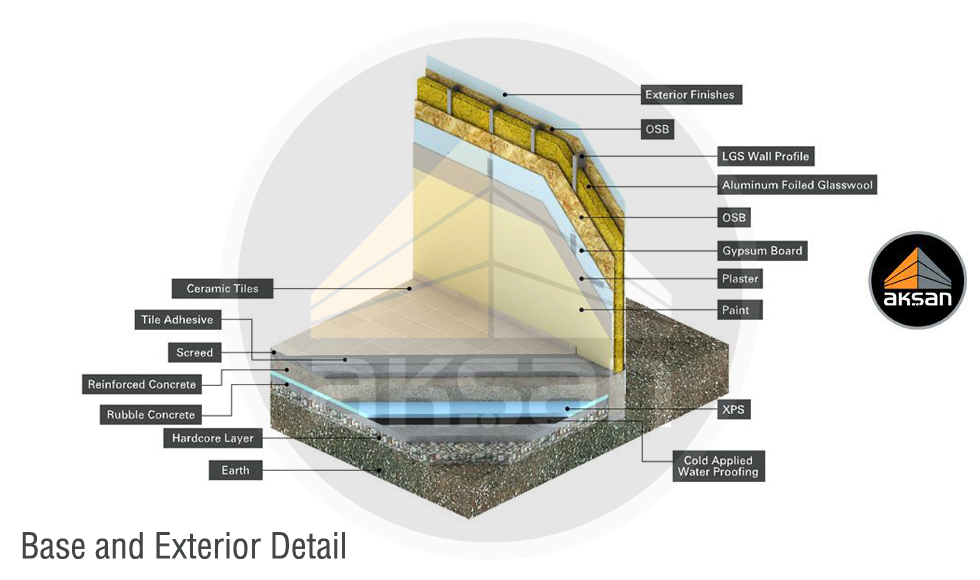

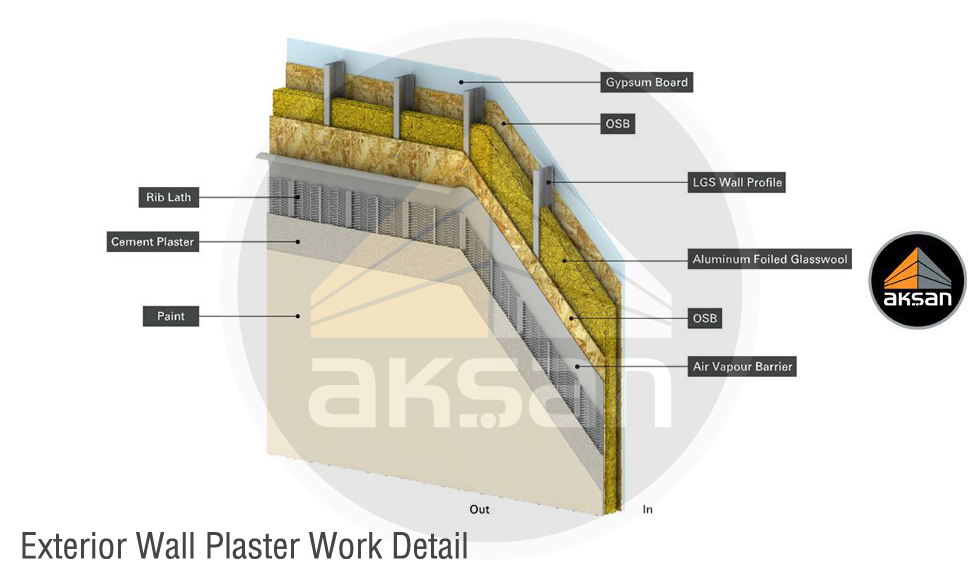

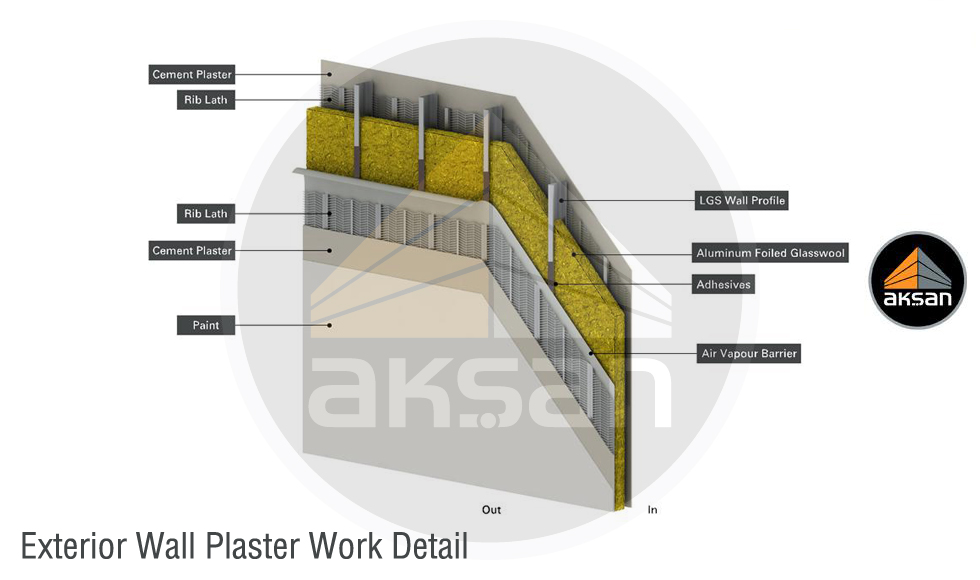

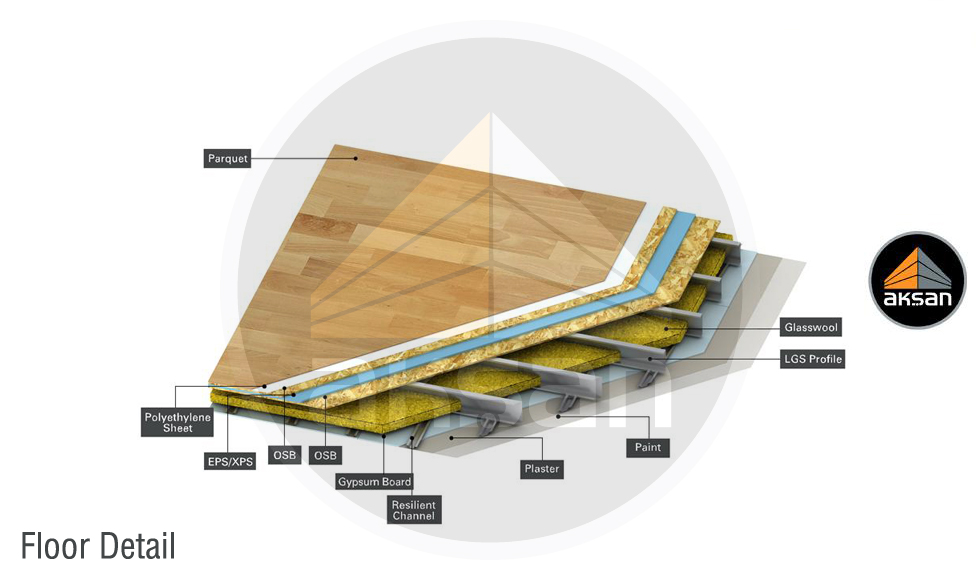

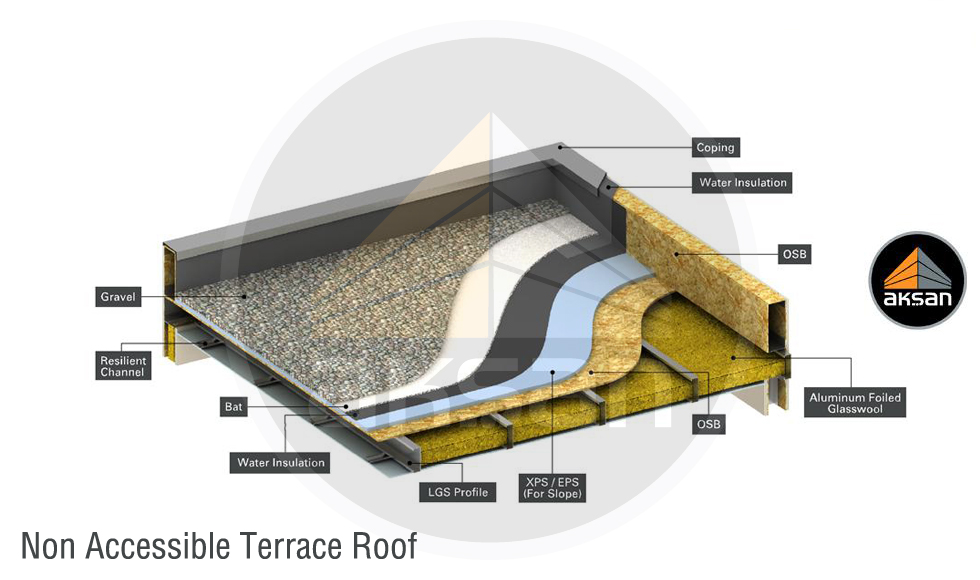

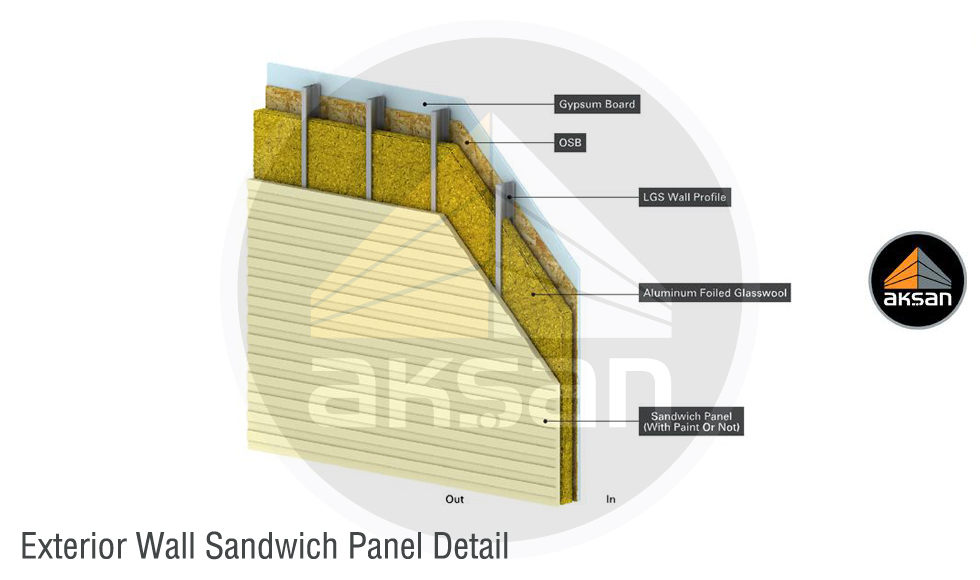

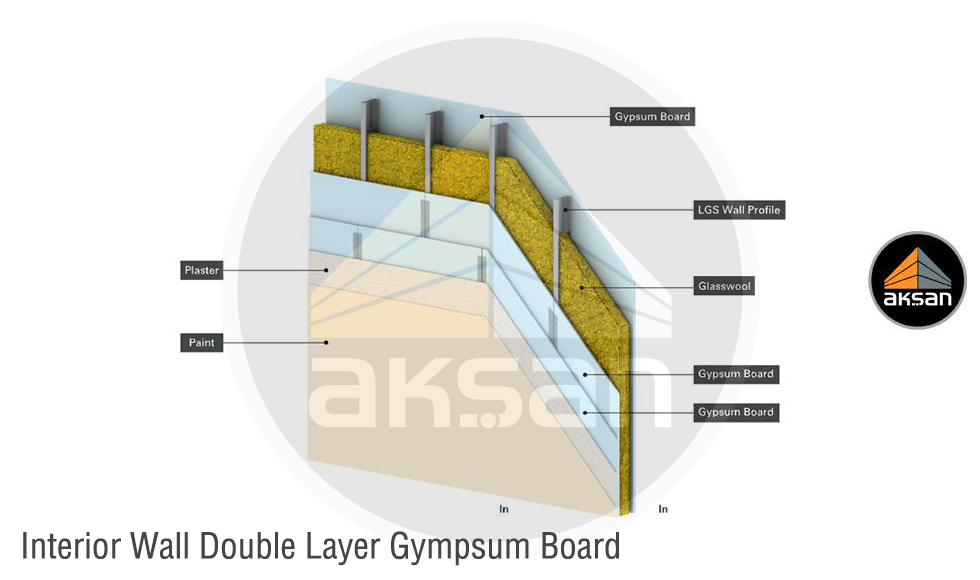

- Systems Details
Light Steel Construction System is a kind of construction in which the structural components are manufactured from galvanized steel with cold forming process. Having been manufactured under control in factories using state-of-the-art machinery, the structural components are mounted after being transported under protection, to the construction site. Thus, the man-made errors in Light Steel Construction System are minimized. Also, as the manufacturing in construction site is minimized, the damages and faults resulting from this manufacturing are eliminated to a great extent. Even if we only count those qualities, the Light Steel Construction System has superiority over conventional reinforced concrete buildings
Buildings constructed with Light Steel Construction System are lighter than the other buildings with the same size, thus the load imposed on the structure during earthquake is mitigated and this greatly increases the earthquake resistance. The load bearing capacity/weight ratios in Light Steel Construction System is quite high. Furthermore, due to their more efficient plastic strain behaviors compared to the reinforced concrete constructions, light steel constructions do not have sudden structural collapses in case of an earthquake and this ensures the building to remain safe. Ministry of Public Works and Settlement General Directorate of Disaster Affairs technical report for the earthquake resistance test of the Light Steel Building, please click here.

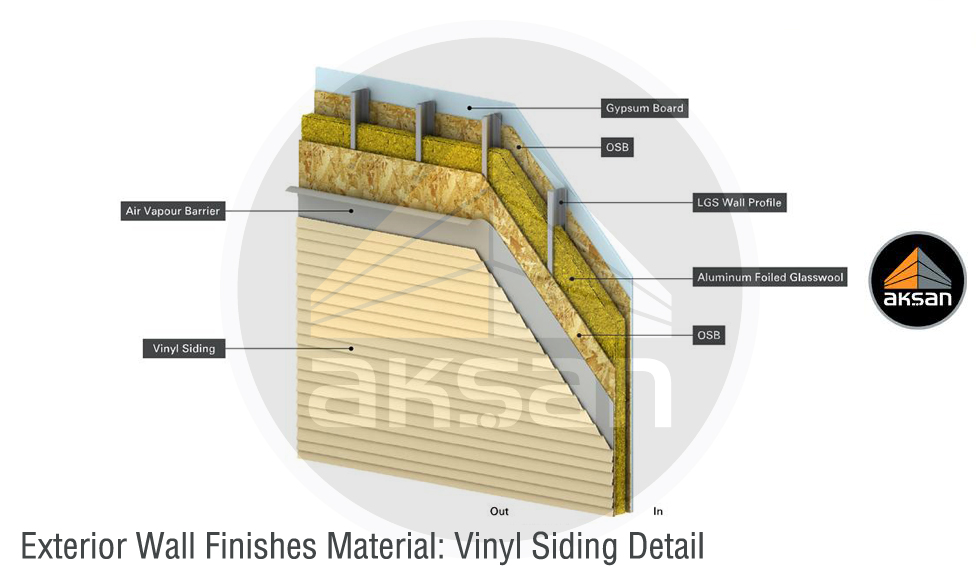

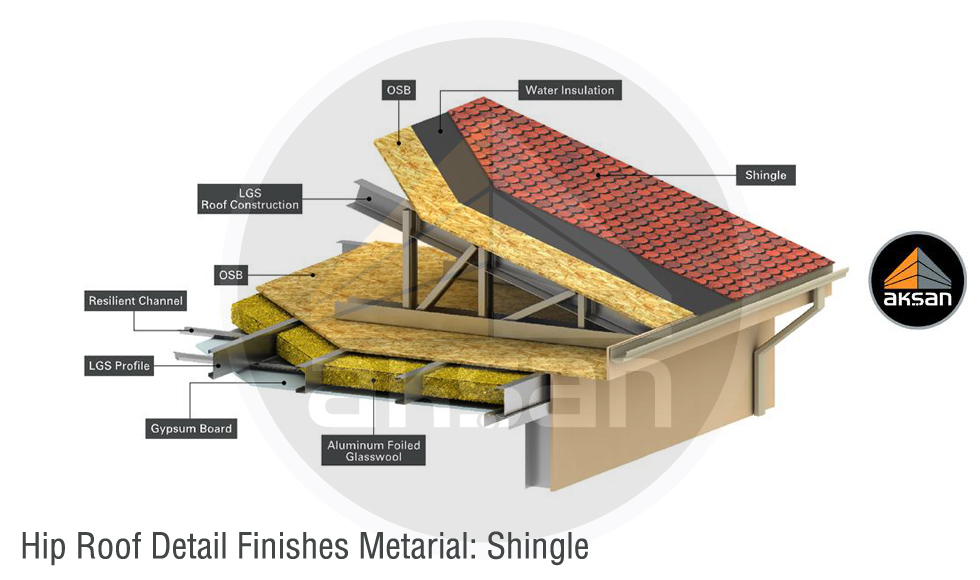

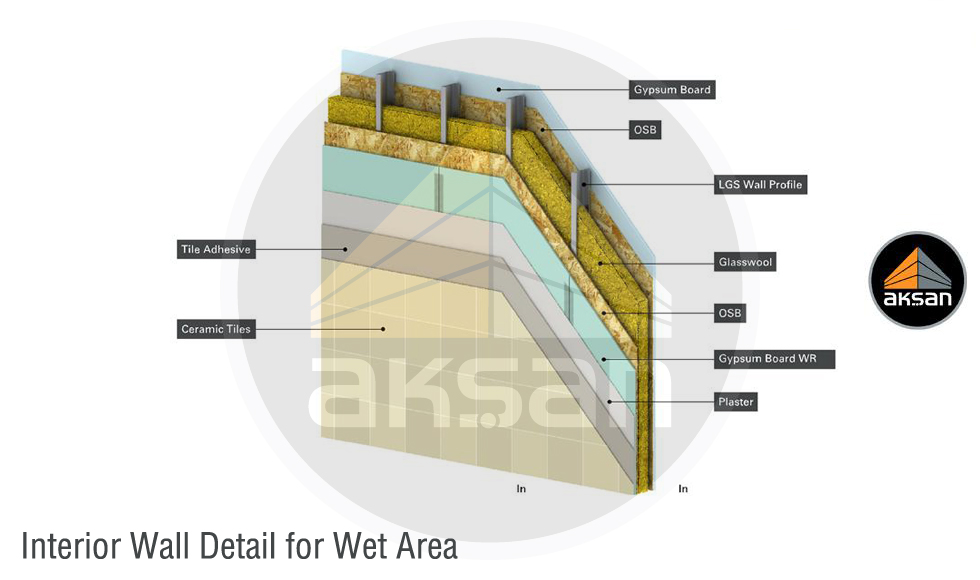

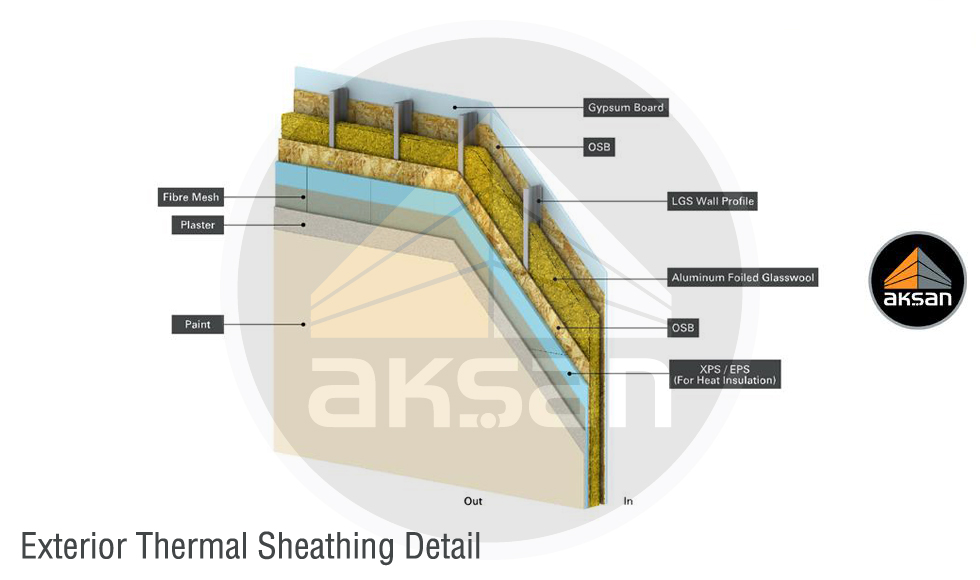

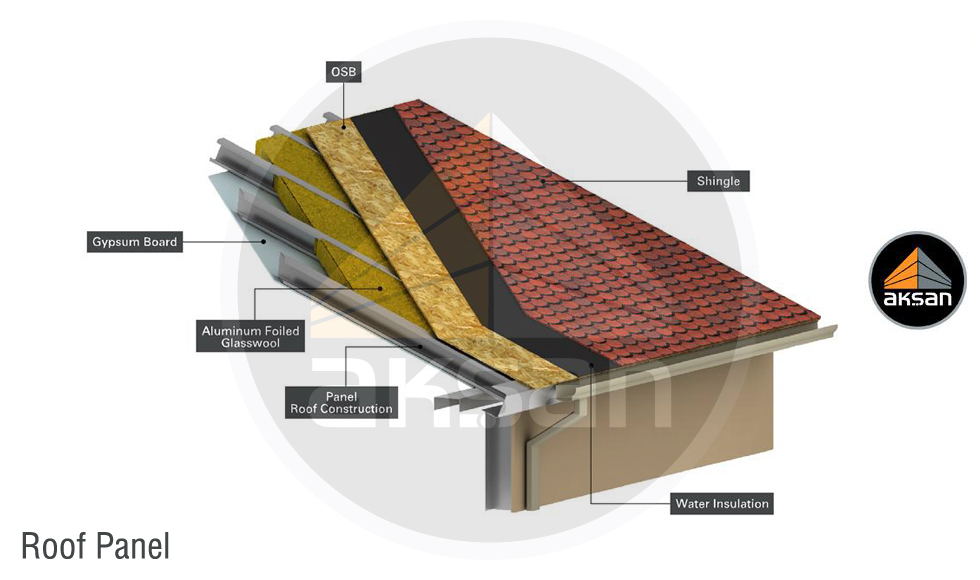

The construction stages of steel constructions are also similar to the construction of conventional reinforced concrete buildings. Building is designed; its architectural and static projects are prepared. Then, the manufacturing of steel construction starts. Manufacturing is done in the factory without any flaws. Parts of the construction such as floor, wall, roof etc. are produced in required thicknesses from galvanized steel profiles. Considering the distance of application site and transportation conditions, the steel profiles produced, either profiled or paneled, are sent to the construction site without any loss. The steel profiles, having arrived to the construction site, are mounted by experienced installation teams according to architectural project. Only special screws are used in the installation; no welding is performed. After its installation is completed, the carcass is filled with insulation materials (glass wool, rock wool etc.). The walls are covered with materials like OSB (Oriented Strand Board).
When its construction speed and potential creditability are considered, Light Steel Construction System is extremely advantageous in terms of costs. The leading element increasing the costs in a construction project is the time. Reinforced concrete constructions are completed in a longer period. As light steel buildings can be completed in relatively shorter periods and the flaws related to the workmanship are minimized, it ensures benefits as for cost and time.
It is possible to produce every kind of design with Light Steel Construction System. Whether modern or conventional, all housings can be built elegantly with this system. Regional characteristics and preferences can easily be reflected in such constructions. Residences can be designed as independent houses, twin houses, or row houses. Light Steel Construction System can easily be applied to the non-housing constructions. Schools, hospitals, dormitories, kindergartens, bazaars, marketplaces and alike are social buildings open to public projects that have been frequently completed by Akşan Construction recently. As the safety of life is under focus in Light Steel Construction System, the typical story height in such buildings is 3.00 m. However, it is possible to elevate it with conventional reinforced heavy steel components. Apart from being earthquake resistant, the three-storey housings built with Light Steel Construction System are also important because they meet the expectations of our people. With its fast and economic building technology, Akşan Construction provides the people of our country with beautiful and chic gardened villas. Achieving this by means of cooperatives and the concept projects it developed, Akşan Construction turns the dreams of people about having an earthquake-resistant house with red louvers in a garden into reality.
The construction speed of a building varies according to its size, shape, whether it has a basement floor or not, location, and the climate and topography of the construction area. These parameters are undoubtedly applicable to the low-rise reinforced concrete buildings too. However, compared to reinforced concrete system, it is a fact that the Light Steel Construction System is faster and environment friendly as it is sound and environmental pollution-free, because the steel construction system comes perfectly from factory.
The earthquake-resistant Light Steel Construction Systems of Akşan Construction have specific design and material standards
. Material standards:
. ASTM A123/A123M-02 Standard Specificaiton for Zinc (Hot-Dip Galvanized) Coatings or Iron and Steel Products
. ASTM A 653/A653M-07 Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc Iron Alloy Coated (Galvannealed) by the Hot Dip Process . ASTM A-653/A653M-1996 Standart Specification Sheet Zinc-Coated (Galvanized) or Zinc Iron (Galvanealed) by the Hot Dip Process
. ASTM B201 Standart Practice For Testing Chromate Coatings of Zinc and Cadmium Surfaces
. ASTM B633 Standart Specification for Electrodeposited Coating of Zinc on Iron and Steel
. BS EN 10268 (2006) Cold rolled steel flat products with high yield strength for cold forming. Technical delivery conditions
. BS 5990-7 (1992) Structural use of steelwork in building
. Specification for materials and workmanship: cold formed sections
. TS 914 EN 1461 (2001) Hot dip galvanized coatings on fabricated iron and steel articles-specification and test methods
. TS 1460 (2001) Metallic Coatings-Hot Dip galvanized coatings on Ferrous Material-Gravimetric Determination of the Mass Per Unit Area
. TS 3813 EN 10130 (2003) Cold rolled low carbon steel flat products for cold forming
. Technical delivery conditions (BS EN 10130-2006)
. TS EN 10268 (2005) Cold rolled steel flat products with high yield strength for cold forming
. Technical delivery conditions
The earthquake-resistant Light Steel Construction Systems of Akşan Construction have specific design and material standards.
Design standards:
. AISI Standard (2001): North American Specification for the Design of Cold Formed Steel Structural Members (ASD & LRFD)
. AISI Manual: Cold-Formed Steel Design
. ASCE 7-93 American Society of Civil Engineers-Minimum Design Loads for Buildings and other Structures
. ASTM E119-07a Standard Test Methods of Fire Test of Building Construction and Materials
. BS 5990-5 (1998) Structural use of steelwork in building. Code of practice for design of cold formed thin gauge sections
. BS 5990-6 (1995) Structural use steelwork in building. Code of practice for design of light gauge profiled steel sheeting
. BS 5990-8 (2003) Structural use steelwork in building. Code of practice for fire resistant design
. BS 5990-9 (1994) Structural use of steelwork in building. Code of practice for stressed skin design
. TS EN 1993-1-3 (Eurocode 3- Design of steel structures-Part 1-3: General rules-Supplementary rules for cold-formed members and sheeting)
. TS 498 Structural Steel Dimensions and Loads
. TS 648 Structural Steel Calculation and Erection Rules
. TS 11372 Cold Formed Thin Gauge Calculation Rules
. Turkish Seismic Code (DBYBHY) (2007)
